    Electric Mini Circuit Breaker 50 / 60Hz Micro Circuit Breaker 20000 Times

    Ask Lasest Price
    Brand Name : SEFIE
    Model Number : SFM4-63
    Certification : CE, ROHS, CB
    Price : Negotiable
    Supply Ability : 200000 pcs per month
    Delivery Time : 14 days after receipt of deposit
    • Product Details
    • Company Profile

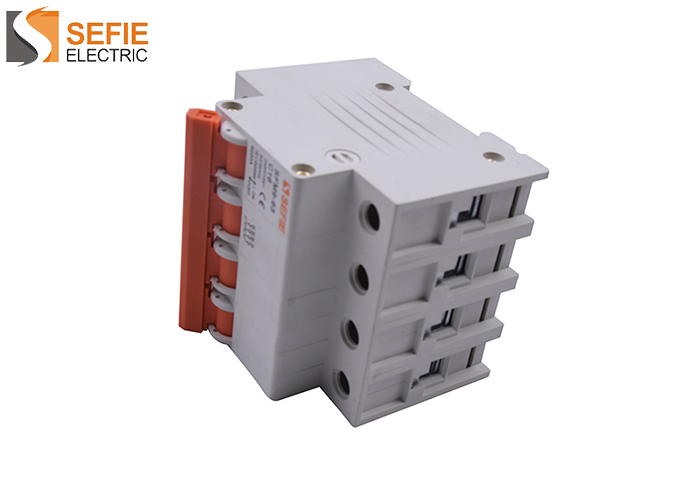

    Electric Mini Circuit Breaker 50 / 60Hz Micro Circuit Breaker 20000 Times

    Electric Mini Type MCB 50 / 60Hz Mini Circuit Breaker


    SFM4-63 series mini Circuit Breaker mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce, etc. it has pleasing outlook & high breaking capacity, reliable performance, high inflammable resistance and shock resistance for long service life. It is within the circuit of AC 50/60Hz, rated voltage of single pole up to 240V, two, three or four poles up to 415V.

    1. Easy mounting onto 35mm DIN rail

    2. High short-circuit capacity

    3. Protection against both overload and short circuit


    Electrical Feature
    1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
    Poles1P, 2P, 3P, 4P
    Rate voltage(V) Ue230/400~240/415
    Insulation voltage(V) Ui500
    Rated frequency(Hz)50
    Tripping curveB,C,D Type
    StandardIEC60898-1
    Breaking capacity(Ka)10
    Power loss per pole
    Rated current(A)Max power loss per pole(W)
    1, 2, 3, 4, 6, 102
    16, 20, 25, 32,3.5
    40, 50, 63,5
    Pollution degree
    Energy limiting class3

    Mechanical Features
    Electrical life4000
    Mechanical life20000
    Contact position indicatorNO
    Protection degreeIP20
    Reference temperature for setting of thermal element30℃
    Working ambient temperature-5~40℃
    Storage temperature-25~70℃

    Installation
    Terminal connection typeCable
    MountingOn DIN rail IEC60715(35mm) by means of fast clip device

    Temperature derating

    The maximum permissible crrent in a circuit breaker depends on the ambient temperature where the circuit breaker is placed. Ambient termperature is the temperature in side the enclosure or switchboard in which the circuit breakers are installed.
    The reference temperature is 30℃

    Rated current(A)
    -35℃
    -30℃
    -20℃
    -10℃
    0℃
    10℃
    1
    1.3
    1.26
    1.23
    1.19
    1.15
    1.11
    2
    2.6
    2.52
    2.46
    2.38
    2.28
    2.2
    3
    3.9
    3.78
    3.69
    3.57
    3.42
    3.3
    4
    5.2
    5.04
    4.92
    4.76
    4.56
    4.4
    6
    7.8
    7.56
    7.38
    7.14
    6.86
    6.6
    10
    13.2
    12.7
    12.5
    12
    11.5
    11.1
    16
    21.12
    20.48
    20
    19.2
    18.4
    17.76
    20
    26.4
    25.6
    25
    24
    23
    22.2
    25
    33
    32
    31.25
    30
    28.75
    27.75
    32
    42.56
    41.28
    40
    38.72
    37.12
    35.52
    40
    53.2
    51.2
    50
    48
    46.4
    44.8
    50
    67
    65.5
    63
    60.5
    58
    56
    63
    83.79
    81.9
    80
    76.86
    73.71
    70.56

    Rated current(A)
    20℃
    30℃
    40℃
    50℃
    60℃
    70℃
    1
    1.05
    1
    0.96
    0.93
    0.88
    0.83
    2
    2.08
    2
    1.92
    1.86
    1.76
    1.66
    3
    3.12
    3
    2.88
    2.79
    2.64
    2.49
    4
    4.16
    4
    3.84
    3.76
    3.52
    3.32
    6
    6.24
    6
    5.76
    5.64
    5.28
    4.98
    10
    10.6
    10
    9.6
    9.3
    8.9
    8.4
    16
    16.96
    16
    15.36
    14.88
    14.24
    13.44
    20
    21.2
    20
    19.2
    18.6
    17.8
    16.8
    25
    26.5
    25
    24
    23.25
    22.25
    21
    32
    33.92
    32
    30.72
    29.76
    28.16
    26.88
    40
    42.4
    40
    38.4
    37.2
    35.6
    33.6
    50
    53
    50
    48
    46.5
    44
    41.5
    63
    66.78
    63
    60.48
    58.9
    55.44
    52.29
